TCWallPort-D-KA01-01 Temperature Monitoring Point

£22.50 ex. VAT
£27.00 inc. VAT

Double Socket Thermocouple temperature monitoring point with 2 x one meter integral K Type thermocouple fine wire probes.

Description

TCWallPort-D-KA01-01 – Double 1m K Type temperature monitoring point

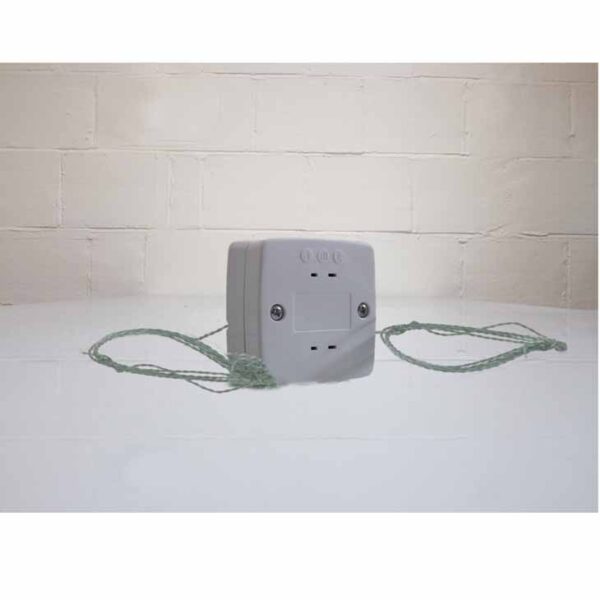

Double Socket Thermocouple temperature monitoring point with  2 x one meter integral K Type thermocouple fine wire probes to enable the testing of two points.

Designed for hot and cold water pipes or TMV’s with difficult or impaired access.

Features

Fast – no waiting for temperatures to stabilize

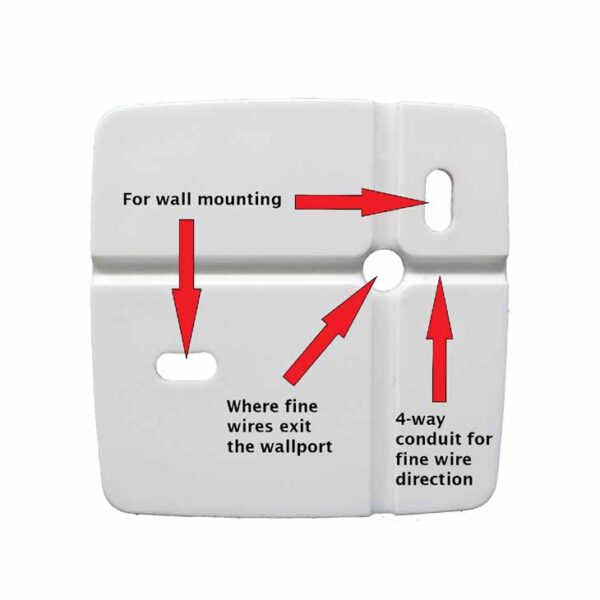

Easy installation – The Double 1m K Type temperature monitoring point can be wall mounted or recessed with a choice of wiring direction. Rear plate conduits allow user choice of wiring direction ie to the side, rear, top and bottom or combination of.

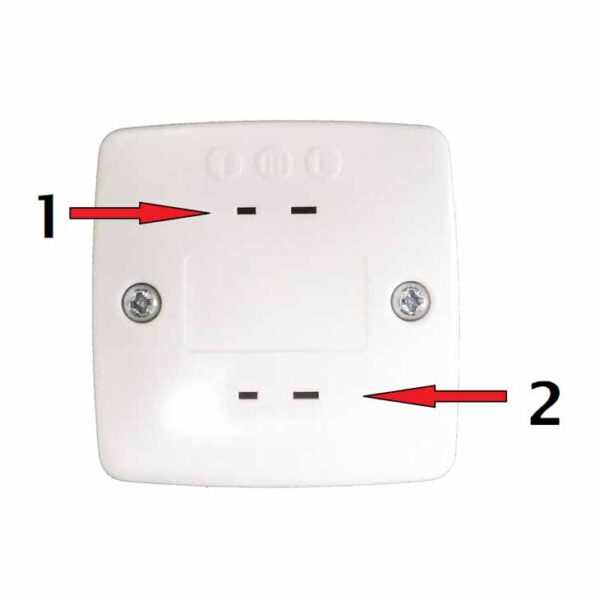

Each wire has a numbered label that identifies the corresponding socket on the front facia

Thermocouple Type – K

Accuracy – Class I (±1.5°C ±0.25%)

Measurement Range -100 to 250°C

Probe Length (each) – 1 Meter

Probe Diameter – 0.3mm

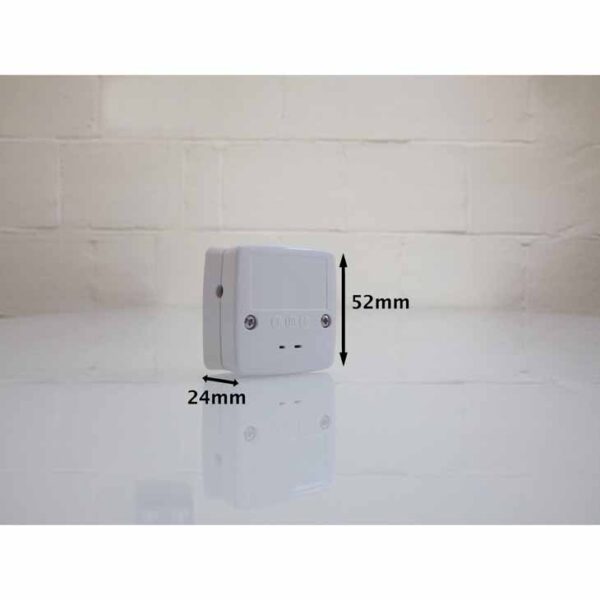

Box Dimensions – 52 x 52 x 24mm

Constructed from durable ABS plastic with a splash-proof design.

Front plate space for location/identification label or barcode label (label not included)

Custom made lengths can be quoted for upon request

Requires: A digital thermocouple thermometer and Connection Cable



Additional information

Weight 0.62 kg

TCWall-KA01-Series Data Sheet

TCWallPort-D-KA01 Datasheet
