TCWALLR-KA01-01 – Red TCWallPort with 1m K Type Fine Wire Probe

£20.50 ex. VAT
£24.60 inc. VAT

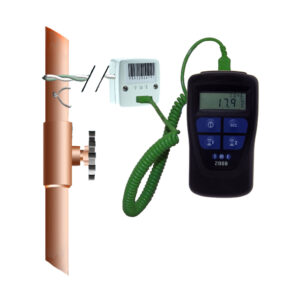

Red thermocouple temperature monitoring point with an integral K Type fine wire probe for hot test points with difficult/impaired access, such as taps and pipework.

Description

TCWALLR-KA01-01 – Red thermocouple temperature monitoring point with an integral K Type fine wire probe for hot test points with difficult/impaired access, such as taps and pipework.

Features

• Colour coded Red to help identify Hot Monitoring Point

• Easy installation – the user can choose as to whether the fine wire extends from either the side or rear of the TCWALLPORT.

• Thermocouple Type – K

• Accuracy – Class I (±1.5°C ±0.25%)

• Measurement Range -100 to 250°C

• Probe Dimensions – 1m x 0.3mm

• Box Dimensions – 52 x 52mm

• Constructed from durable ABS plastic with a splash-proof design.

• Front plate space for location/identification label or barcode label – Note : label not included

Requires: A digital thermocouple thermometer and Connection Cable



Additional information

Weight 0.048 kg
