TME-P3-DS303 – D3 System – PT100 General Purpose Probe 1.5m

Compatible with the D3 System Wireless Base Stations and Transmitters

Request a Quote

Description

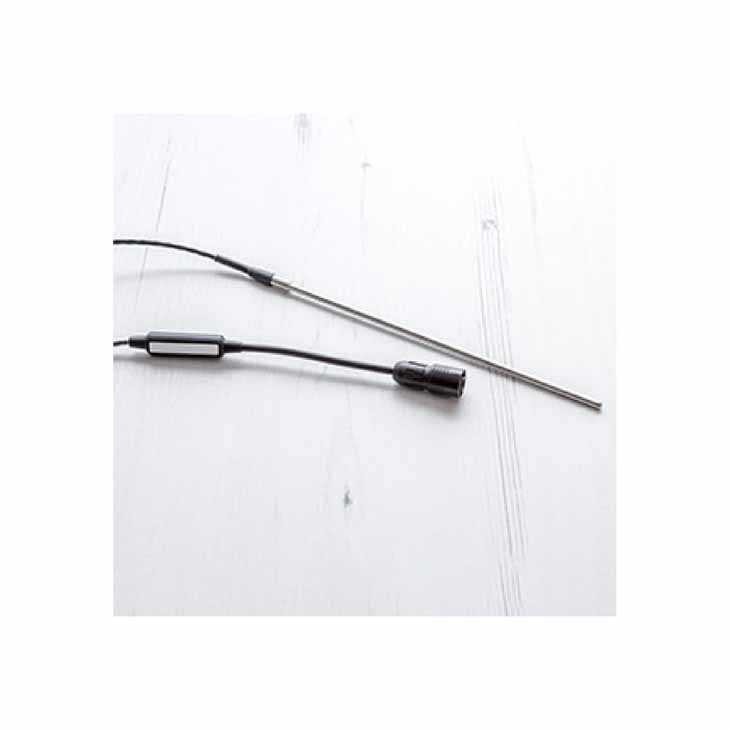

The TME-P3-DS303 is designed to work with the D3 System Wireless Base Stations and Transmitters. This high accuracy general purpose temperature probe is manufactured with a Class A PT100 sensor element housed within a 3mm diameter sheath, terminated and pot sealed. The probes is supplied with 1.5m FEP cable which is designed to stay flexible at low temperatures.

Features

• Temperature range: -30°C to 70°C

• Accuracy: ±0.1°C (±0.1°C when calibrated)

PT100 Class A

• IP68 Waterproof

• 150mm x 3mm 316SS tip

1.5m FEP cable with Hirose connector
